01 · PRECISION ENGINEERING

FROM DESIGN INTENT
TO BUILDABLE REALITY.

THE LARK RESIDENCE · TYPE A

Explore the project in two complementary ways. Follow the curated engineering story, or enter the real BIM model and inspect what Precision delivers.

05DOCUMENTED LEVELS14ARCHITECTURAL SHEETS32INTERIOR SHEETS01REAL IFC MODEL

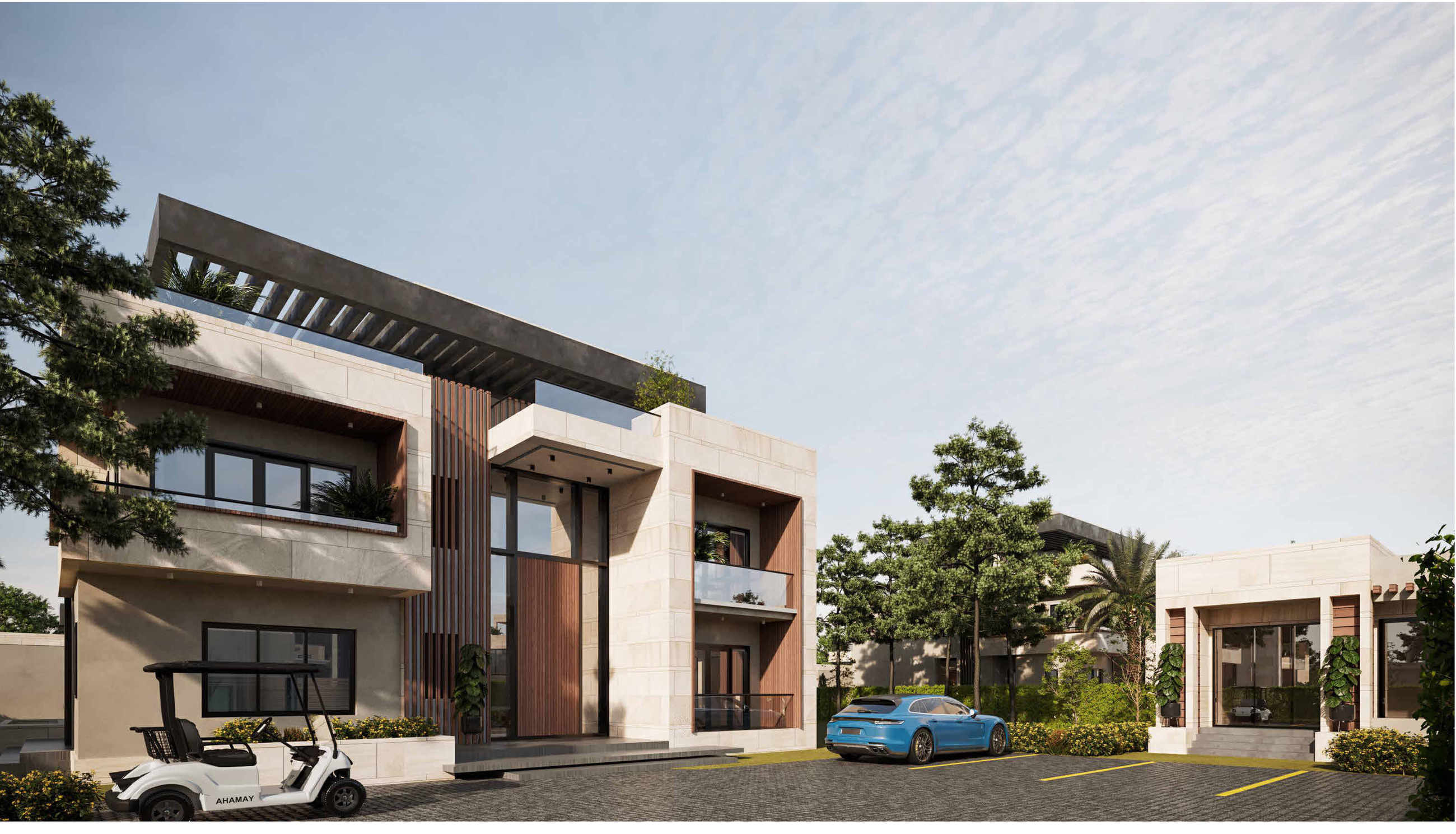

The Lark Residence exterior design visual

02 · PROJECT STORY

ONE PROJECT.
TWO PRECISION DISCIPLINES.

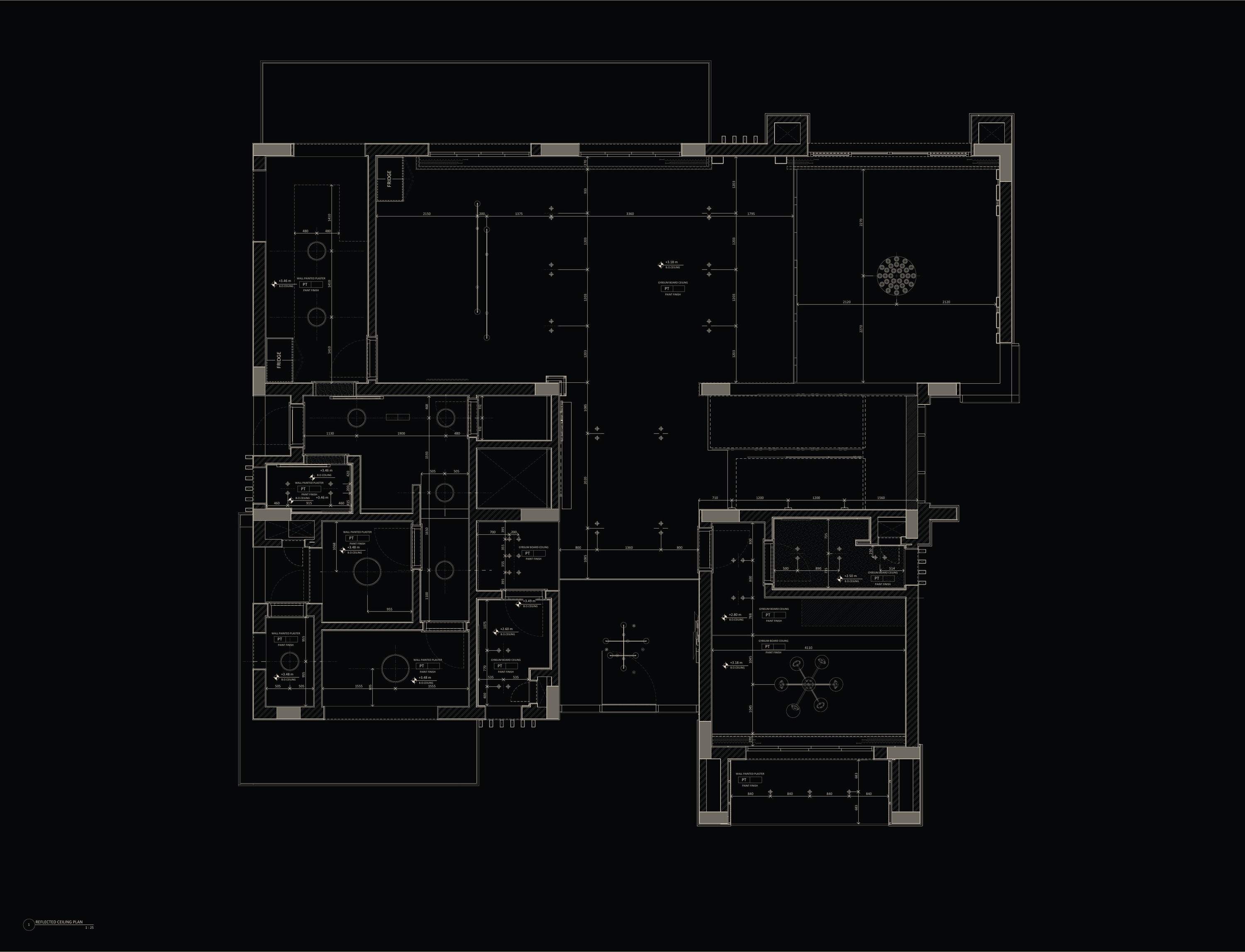

Precision’s documented scope for this prototype is Architecture and Interior. The villa is presented as a single coordinated system, from the external composition to room layouts, ceilings, electrical outlets and detailed joinery.

ARCHITECTUREIN PRECISION SCOPE

INTERIORIN PRECISION SCOPE

STRUCTURE / MEPVISIBLE AS COORDINATION CONTEXT

ROOF FLOOR TOS +11.180 mSECOND FLOOR FFL +7.950 mFIRST FLOOR FFL +4.350 mGROUND FLOOR FFL +0.600 mZERO LEVEL FFL +0.000 m

DESIGN INTENTARCHITECTURE + INTERIORTHE LARK RESIDENCE · TYPE A

Exterior design visual with engineering callouts

SELECT A CALLOUT TO OPEN THE ORIGINAL DRAWING

03 · DESIGN TO DOCUMENTATION

THE SAME ELEMENT,
SEEN THREE WAYS.

A feature is not presented as an isolated render. The visitor can move from the design visual to the real model element and then to the original construction detail.

01DESIGN INTENT→02MODEL ELEMENT→03ENGINEERING RESOLUTION

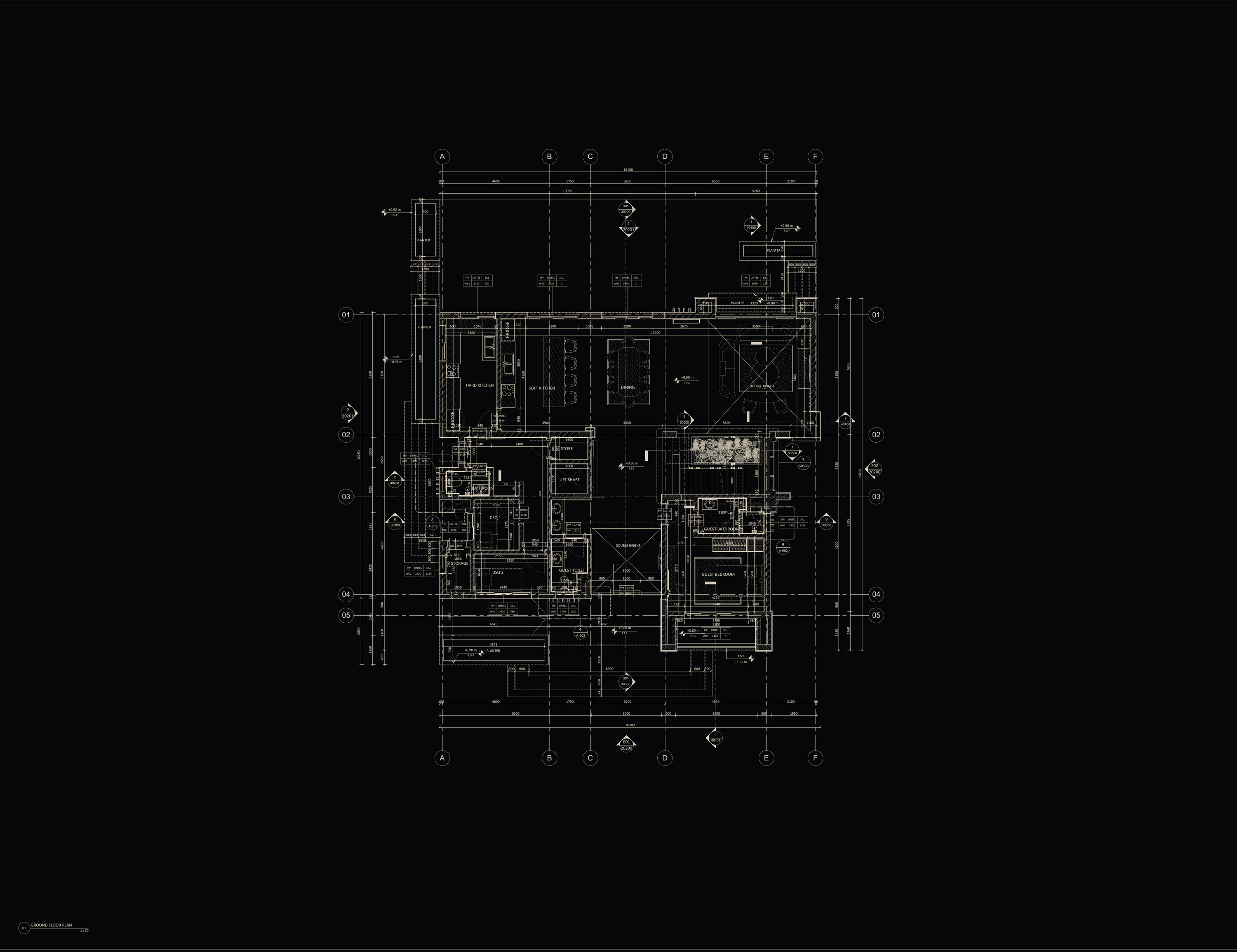

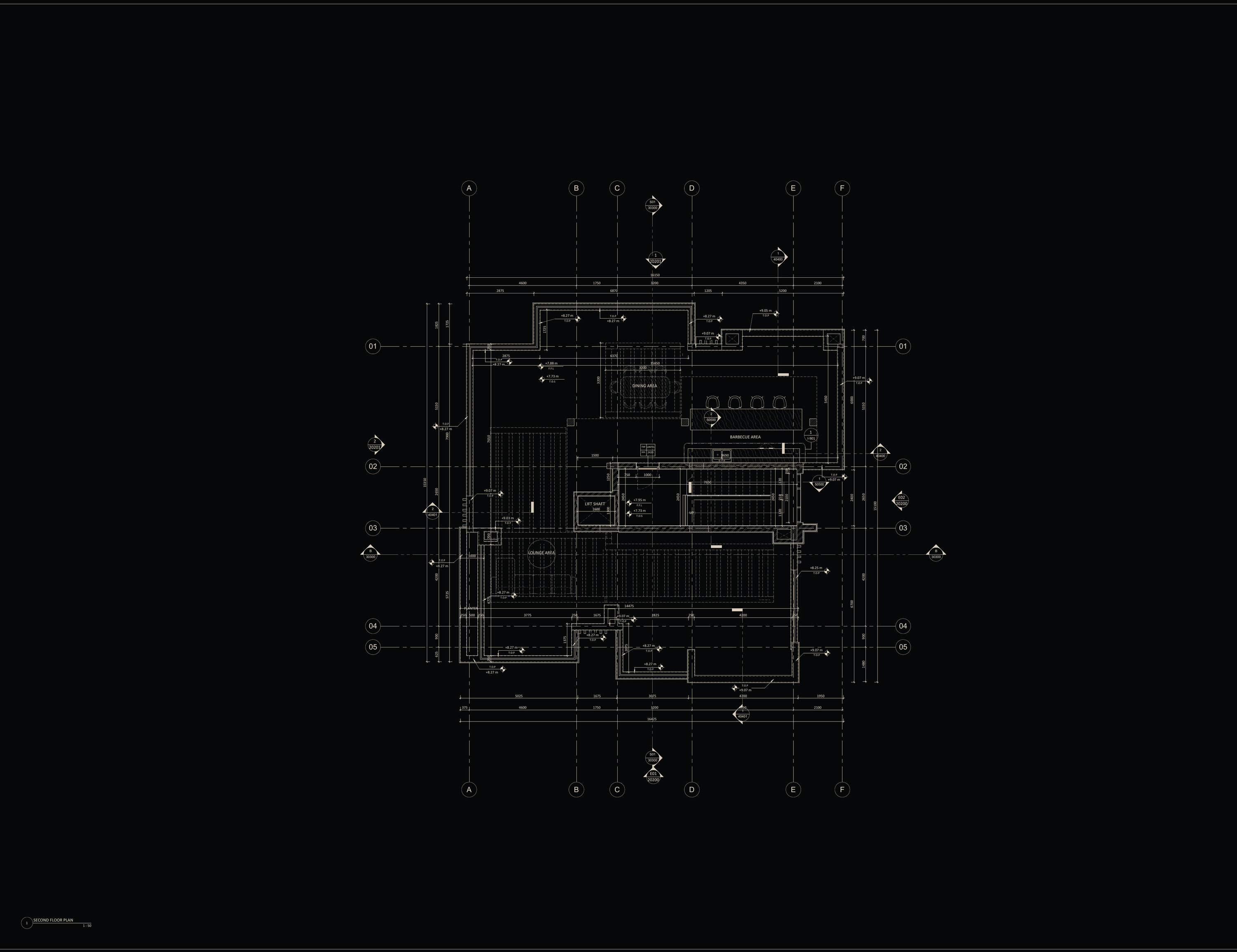

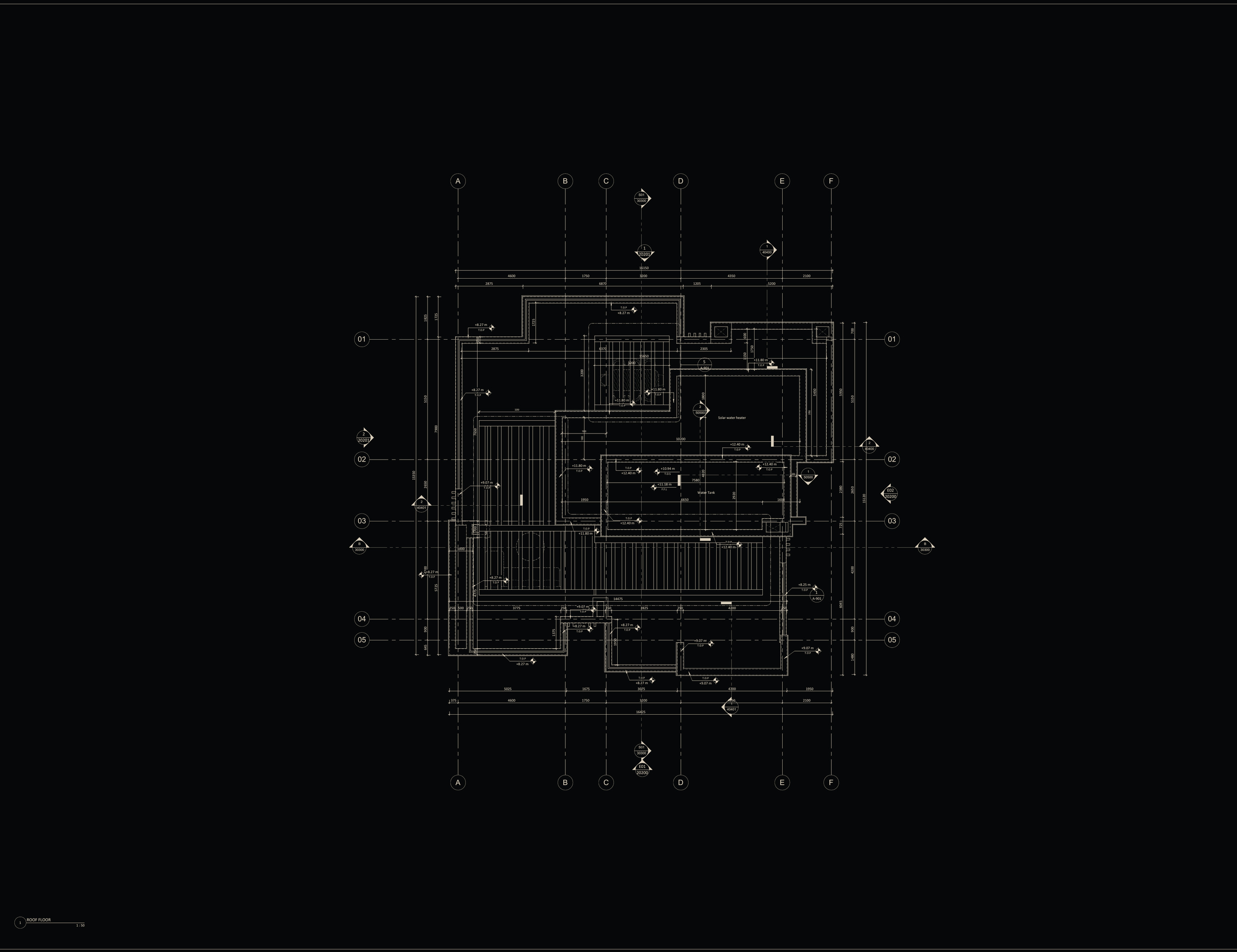

04 · FLOOR PLAN LOGIC

THE COMPLETE DRAWING.
NOT A DECORATIVE CROP.

Original plan content is shown in full, without the title block, on a vintage charcoal background with warm technical linework.

05 · SECTION JOURNEY

READ THE VILLA
VERTICALLY.

Sections A and B reveal level relationships, double-height spaces, the stair core and actual floor build-ups. The drawing remains complete and inspectable.

ROOF FLOOR TOS +11.180 mSECOND FLOOR FFL +7.950 mFIRST FLOOR FFL +4.350 mGROUND FLOOR FFL +0.600 mZERO LEVEL FFL +0.000 m

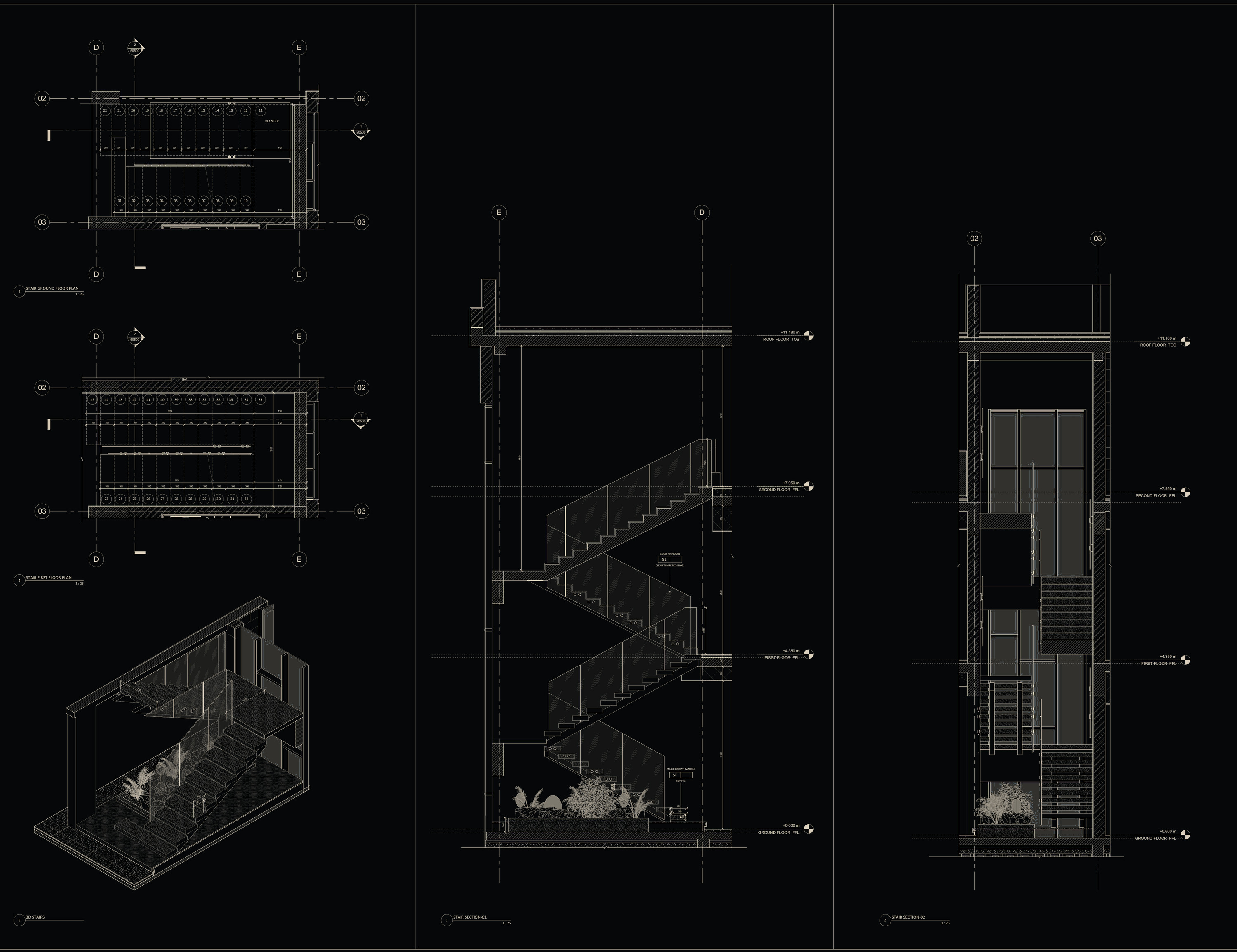

Original stair isometric extracted from the drawing — ORIGINAL 3D STAIR VIEW

06 · STAIR OBJECT

ENGINEERED
ONE STEP AT A TIME.

The stair is treated as a complete engineering object: clear tempered glass handrails, marble coping, numbered flights, planter integration and vertical coordination through the villa.

1:25DETAIL SCALE

50500STAIRCASE SHEET

GLCLEAR TEMPERED GLASS

STMILLIE BROWN MARBLE

07 · ENVELOPE LOGIC

FORM CONNECTED
TO BUILDABLE DETAIL.

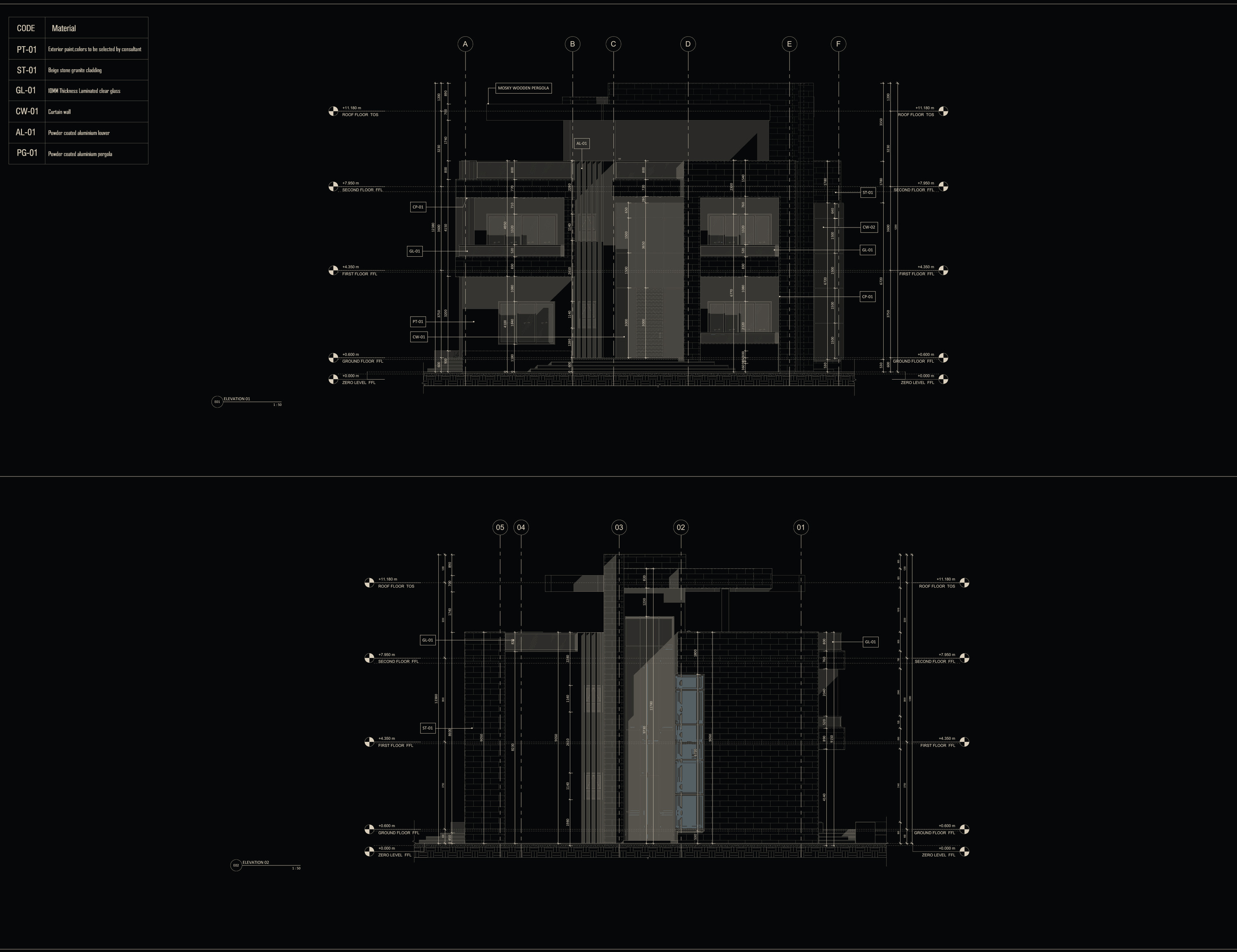

Switch from the complete elevations to the opening schedules, main shade details and louver modules that resolve the façade.

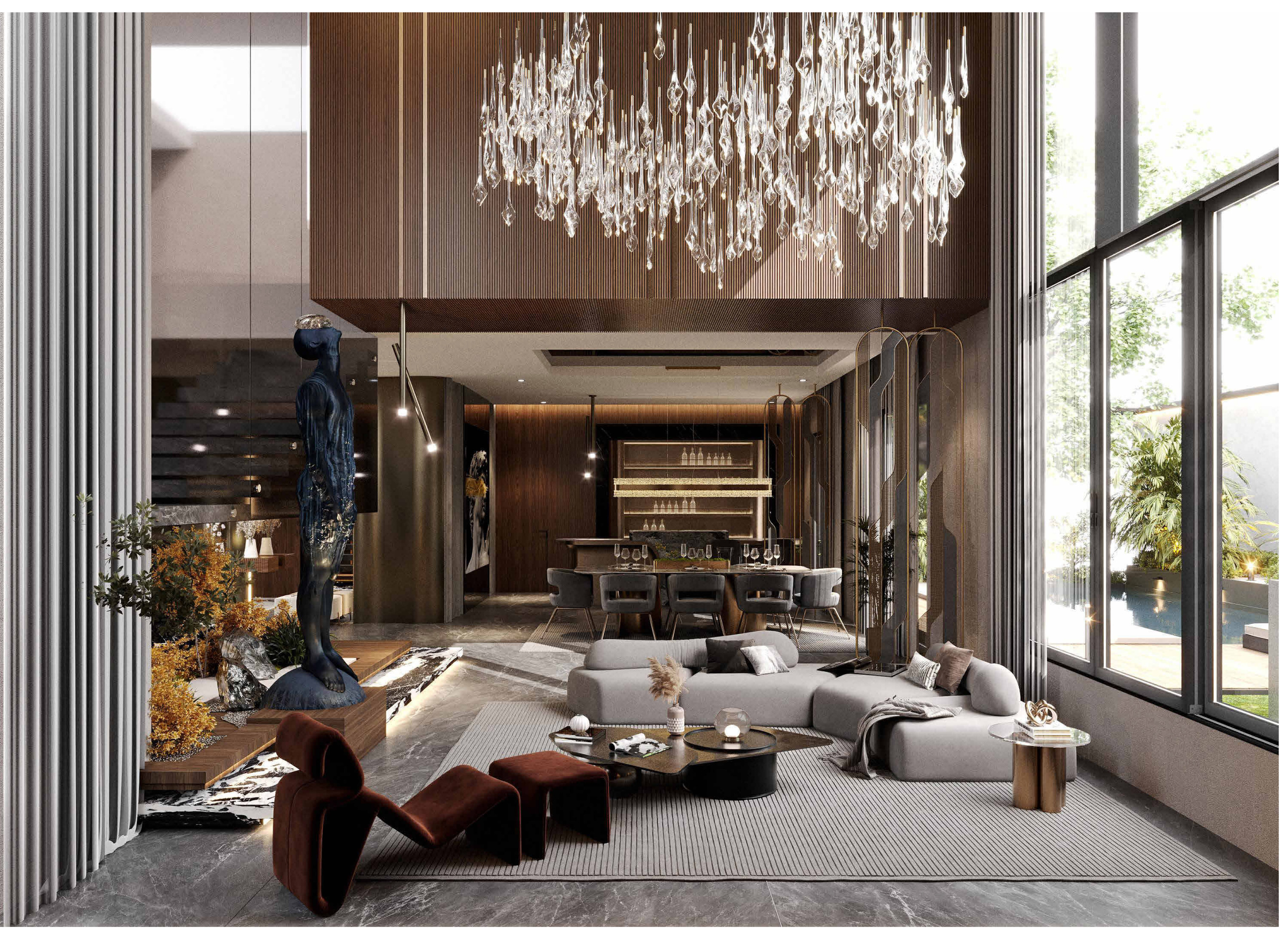

08 · INTERIOR COORDINATION

ONE SPACE.
FIVE COORDINATED LAYERS.

09 · KITCHEN / JOINERY

DESIGN INTENT
RESOLVED AT 1:10.

The visual story leads to the original kitchenette and kitchen construction sheets. Every cabinet, shelf, backing, hinge, skirting and worktop remains readable.

10 · REAL MATERIAL BOARD

MATERIALS WITH
A PROJECT ADDRESS.

Real project imagery replaces generic color blocks. Each sample is tied back to the design feature and to the documented construction assembly.

DESIGN VISUALHOW THE MATERIAL IS EXPERIENCED→MODEL / CALLOUTWHERE IT EXISTS→DETAIL / SPECIFICATIONHOW IT IS BUILT

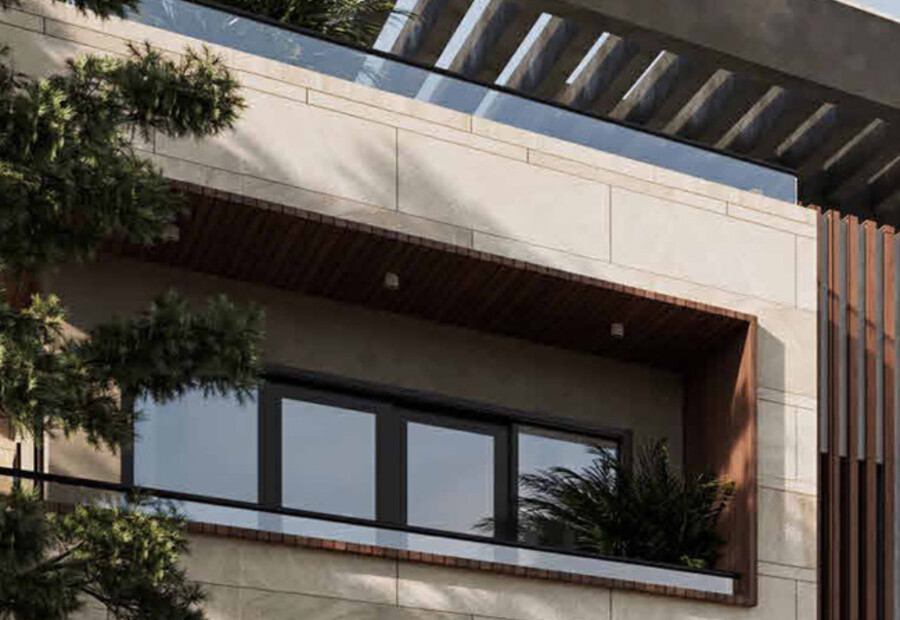

Project stone material — **STONE CLADDING**EXTERNAL ENVELOPE

Project wood slats — **WOOD SLATS**FAÇADE FEATURE

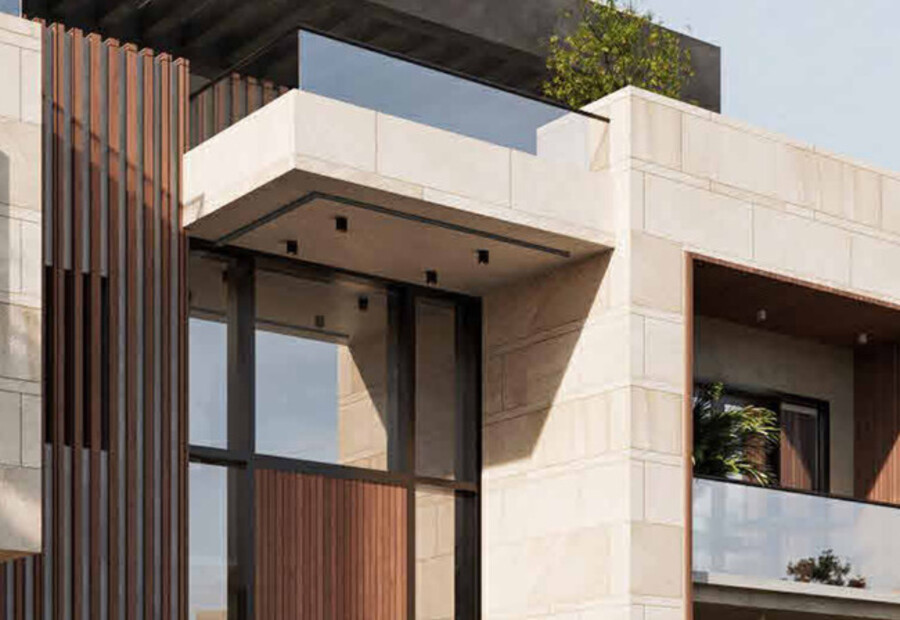

Project glazing — **GLAZING**OPENINGS / HANDRAILS

Project walnut finish — **WALNUT FINISH**INTERIOR JOINERY

Project stone flooring — **STONE FLOOR**INTERIOR SURFACE

Project metal and glass — **METAL + GLASS**STAIR / DETAIL ASSEMBLY

11 · ASSEMBLY LOGIC

THE ENVELOPE
BEYOND ITS SURFACE.

Stone, blockwork, framing, glazing, waterproofing and floor build-ups are shown through the original wall sections rather than recreated graphics.

12 · TECHNICAL DOCUMENTS

THE COMPLETE
DOCUMENTED PROJECT.

Browse the high-resolution architectural and interior drawings. Every sheet opens full, fits the screen without cropping and supports zoom and pan.

LOADING DRAWING INDEX…

13 · PROJECT-SPECIFIC SCOPE

THE TEMPLATE STAYS.
THE SCOPE CHANGES.

Every future project uses the same presentation framework, but the work authored by Precision is identified clearly. Out-of-scope disciplines remain visible only as coordinated context.

PRECISION SCOPEOUT-OF-SCOPE CONTEXT

01ARCHITECTUREPRECISION SCOPE

02INTERIORPRECISION SCOPE

03STRUCTURECOORDINATION CONTEXT

04MEP SYSTEMSCOORDINATION CONTEXT

05LANDSCAPEOUT OF SCOPE

06SITE / CONTEXTREFERENCE ONLY

14 · TWO EXPERIENCES, ONE PROJECT

THE STORY EXPLAINS IT.
THE MODEL PROVES IT.

The Project Journey communicates design intent and engineering logic. The BIM Explorer then gives the client direct access to the real model that Precision produces.

PROJECT JOURNEYDESIGN · DRAWINGS · DETAILS+BIM EXPLORERMODEL · SECTIONS · DATA
